01
2.5 GbpsPer Port
130WPoE Budget
10 GbpsSFP+ Uplink
Web SmartVLAN · QoS · IGMP
01 · The Speed
2.5G MultiGig.
Every Port.

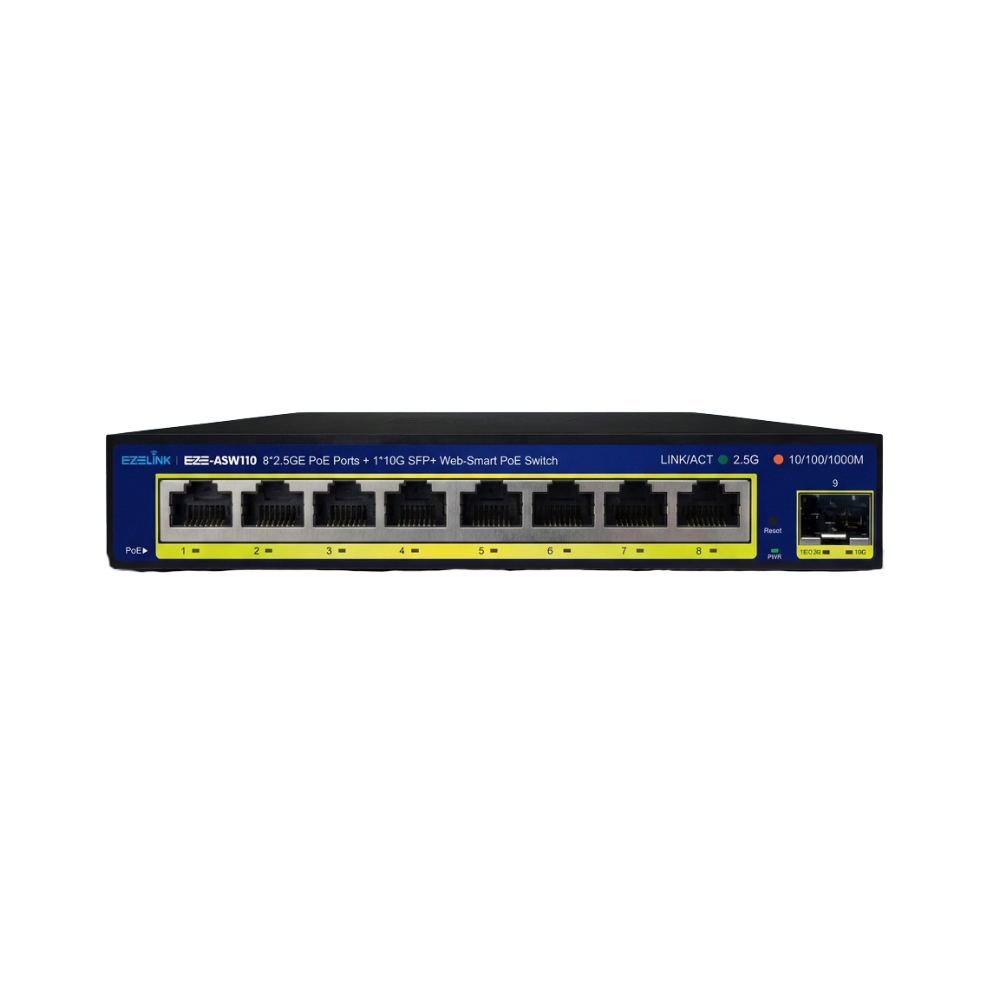

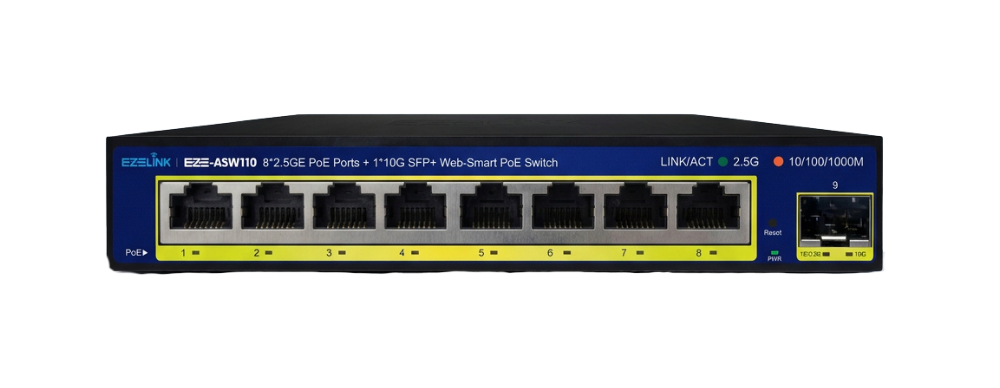

Every one of the ASW110's eight downlink ports runs at up to 2.5 Gbps — two and a half times the bandwidth of a standard Gigabit switch. That matters when connecting modern Wi-Fi 6 and Wi-Fi 6E access points, which can easily saturate a 1G uplink under real-world load. With 2.5G per port and 60 Gbps of switching capacity, the ASW110 removes the access-layer bottleneck that limits throughput in otherwise high-performance networks.
02 · The Power
Power and
Data. One Cable.
All eight ports are PoE-capable — IEEE 802.3af/at compliant with up to 30W per port and a total budget of 130W. Deploy access points, IP cameras, VoIP phones, and IoT sensors without running separate power lines. There's enough budget to power ports simultaneously in real-world deployments, eliminating separate injectors or power distribution hardware. PoE protection includes overload detection, short-circuit safeguard, and auto-recovery.
P1
30W
P2
30W
P3
30W
P4
30W
P5
30W
P6
30W
P7
30W
P8
30W
130WTotal PoE Budget · 8 Ports · IEEE 802.3af/at
03 · The Uplink
10G SFP+
Uplink to Core
The single 10G SFP+ uplink gives the ASW110 four times the bandwidth needed to aggregate all eight 2.5G downlinks at once — so the uplink never becomes the bottleneck. Connect to distribution switches, the EZE-CSW510 core, or any upstream device via fiber or DAC cable. The SFP+ slot is backward compatible with 1G and 2.5G optics, and ±4KV surge protection keeps operation resilient in electrically demanding environments.
Native Speed10 Gbps
Also Compatible2.5 Gbps
Fallback Support1 Gbps
TransceiverSM · MM · DAC Cable
Connect to the EZELINK Core Stack
Pair the ASW110 with the EZE-CSW510 core switch or any EZELINK distribution switch via 10G SFP+ for a clean, fully managed access layer.
04 · In Control
Web Smart
Management.
The ASW110 goes beyond an unmanaged switch without the complexity of full enterprise management. The built-in web GUI gives network teams direct control over VLAN segmentation, QoS prioritisation, IGMP Snooping, link aggregation across up to four ports, and loop prevention — all from any browser, no software to install. Port mirroring, traffic statistics, bandwidth control, and cable diagnostics round out the toolkit. Managed by EZELINK from our GCC NOC.
VLANPort-based VLAN, Access / Trunk modes
QoSDSCP, SP, WRR scheduling
IGMPSnooping for multicast traffic control
Link Agg.Up to 4 ports for bonded uplinks
DiagnosticsCable detection, traffic statistics
ProtectionLoop prevention, flow control
